4×6 Thermal Waybill Label Printer 4 Inch 110mm with Blue Sticker Printer Receipt Printer Thermal Line Printing
$164.84
- CRC: ₡87,094.86
Descripción
Product Description
Thermal Label Printer
MS-490B
MS-490B
4 inch 110mm 4×6 Thermal Waybill Label Printer with Blue tooth USB Interface
Features:
* 4″ Direct Thermal Barcode Label Printer104mm for express label
* 4″ Direct Thermal Barcode Label Printer104mm for express label
* High speed maximum print speed: 8 inch/s(200mm/s).
* Max print width: 104mm.super for express waybill/shipping label
* Support the protection for the overheating
* Long life /supply 12
hours of continuous work
hours of continuous work
* Energy-efficient /Automatic paper detecting and locating
* Can print Multiple languages
* ODM or OEM acceptable
Specification
|
Model no
|
MS-490B
|
|
Resolution
|
203 DPI
|
|
Printing method
|
Thermal dot line printing
|
|
Printing speed
|
Max 101.6 mm (4″) / s
|
|
Printing width(max)
|
108mm (4.25”)
|
|
Printing length(max)
|
2286 mm (90”)
|
|
printer frame
|
plastic
|
|

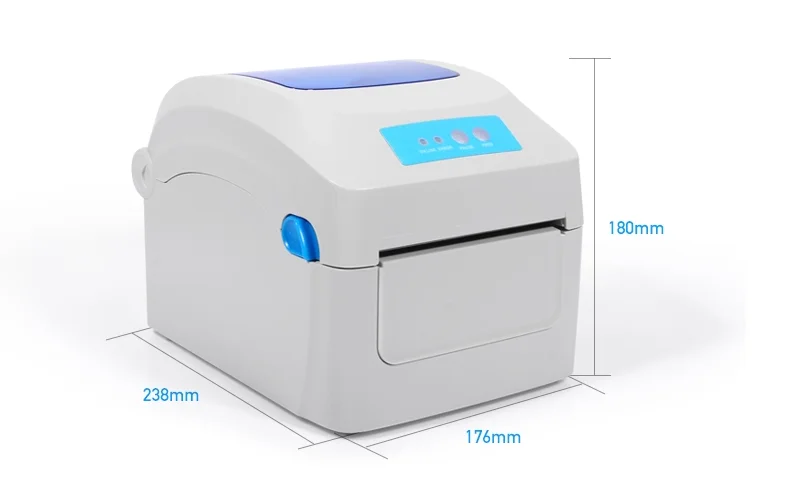

Dimension
|
189.62 mm (W) x 178.50 mm (H) x 219.03 mm (D)
|
|
Weight
|
1.4kg
|
|
Paper roll diameter
|
127 mm (5”) Outer diameter
|
|
processor
|
32-bit efficient processor
|
|
RAM
|
8M Flash memory
|
|
Interface
|
USB 2.0 (High speed mode) Standard
|
|
Serial port optional
|
|
|
TF Card optional
|
|
|
Wifi optional
|
|
|
blue tooth optional
|
|
|
Power
|
adapter
Input: AC 100-240V Output: DC 24V2.5A |
|
User screen
|
standard
1 button 1Two-color LED light |
|
sensor
|
Gap sensor
open sensor black mark sensor |
|
Media type
|
Continuous, gap, black mark
|
|
Media winding type
|
Roll in / out
|
|
Media width
|
25.4 mm ~ 115 mm
|
|
Medium thickness
|
0.06 mm ~ 0.25 mm
|
|
Dielectric core diameter
|
25.4 ~ 76.2 mm (1“ ~ 3“)
|
|
Carbon ribbon
|
None
|
|
Ribbon width
|
None
|
|
Label length
|
10 mm ~ 2286 mm
|
|
Strip mode
|
None
|
|
gap height
|
min 2 mm
|
|
black mark height
|
min 2 mm
|
|
Deviation of printout
|
vertical: 1 mm max.
Horizontal: 1 mm max. |
|
barcode
|
1D/2D barcode supported
|
|
Font and barcode rotation
|
0, 90, 180, 270 °
|
|
Instruction Set
|
TSPL-EZ emulation
|
|
Environmental conditions
|
working: -10 ~ 50 °C (14 ~ 122 °F), 10 ~ 90% No water drops
storage: -40 ~ 60 °C (-40 ~ 140 °F), 10 ~ 90% No water drops |
|
certificates
|
FCC , CE , CB , CCC
|
|

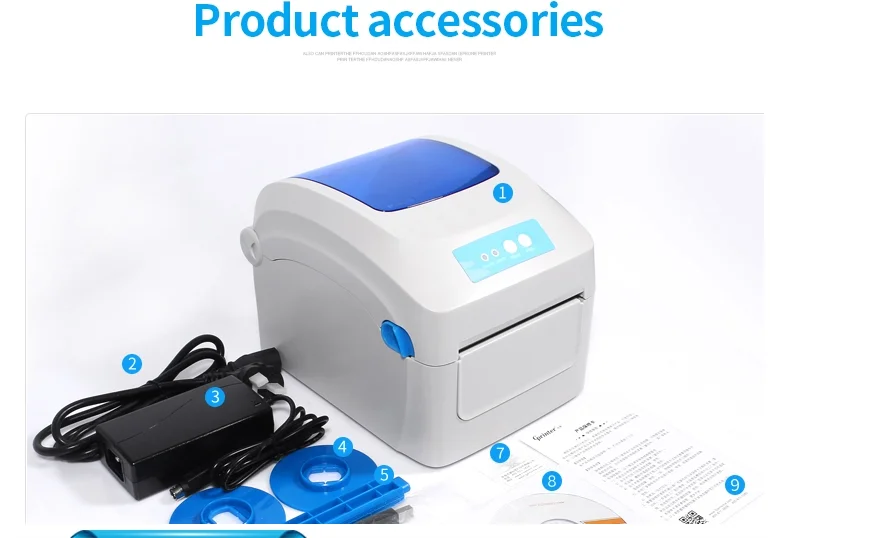

accessories
|
Windows label editing software, drivers and operating manuals CD
Fast Installation guide External voltage automatic switching power supply Power cable USB cable Paper scroll, paper roll fixing plate x 2 |
|
Reliability
|
one year for printer
Print head 30 km or a year first come first Rubber roller 30km or one year first come first |
Production Details
Especificación
Información adicional
| Color | black |
|---|
